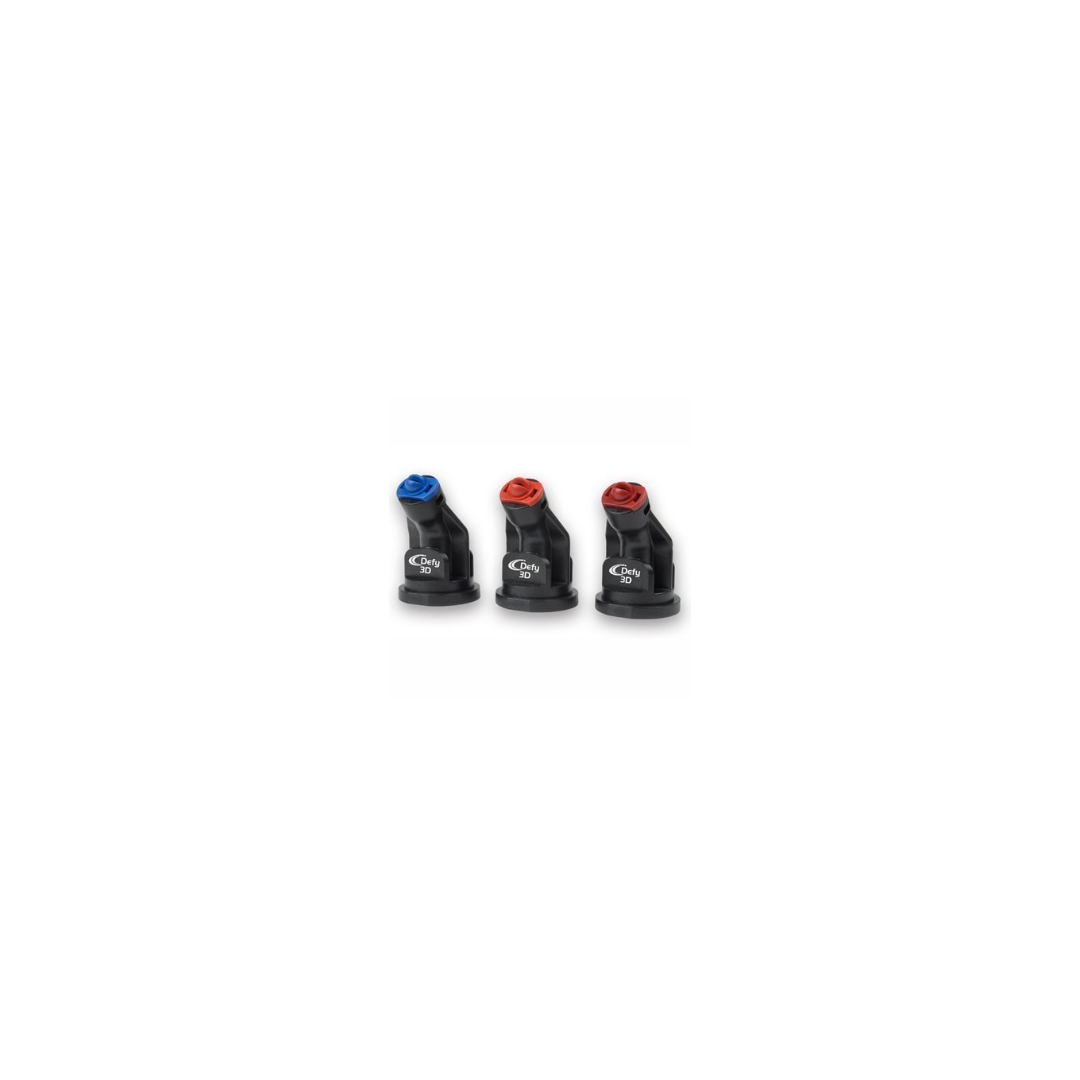

Hypro Defy 3D Nozzle

Download Datasheet

Syngenta Defy 3D nozzles will fit into EF3 self aligning coloured standard nozzle caps. They will also fit EF1, EF2 and Hardi Style Caps.

For the effective deliverance of pre-emergent herbicides to Autumn and Spring seedbeds.

The angled nozzle designed to alternate between forward and backward facing along the boom, giving exceptionally even coverage on the front and back of targets.

Compared to a conventional flat fan nozzle, an astonishing 60-75% less drift (size dependant), increasing the number of spraying days.

Allows you go to at the best time to control weeds, rather than the best weather conditions
Operating pressure range: 0.7-3 bar
Optimum pressure: 2-2.5 bar
Optimum speed: 12-14kph
Optimum boom height: 50-75cm
Water Volume: Best nozzle at 100 l/ha as the effect of the angle outweighs the need for more water to gain coverage increases. Using 100 l/ha increases the time spent spraying vs. filling and traveling

Pressure: Runs at pressure between 0.7 and 3 bar. (Pressures below 1 bar may not be achievable on sprayers with diaphragm check valves governing the nozzle on/off)

Application speed: 12-14 km/h. If conditions are sub-optimal slow down and apply at 12 km/h.

Boom height: Highest efficacy at both 50 and 75 cm boom heights, allowing for the boom to be run a comfortable level above the target with no worries about drop off in deposition.
