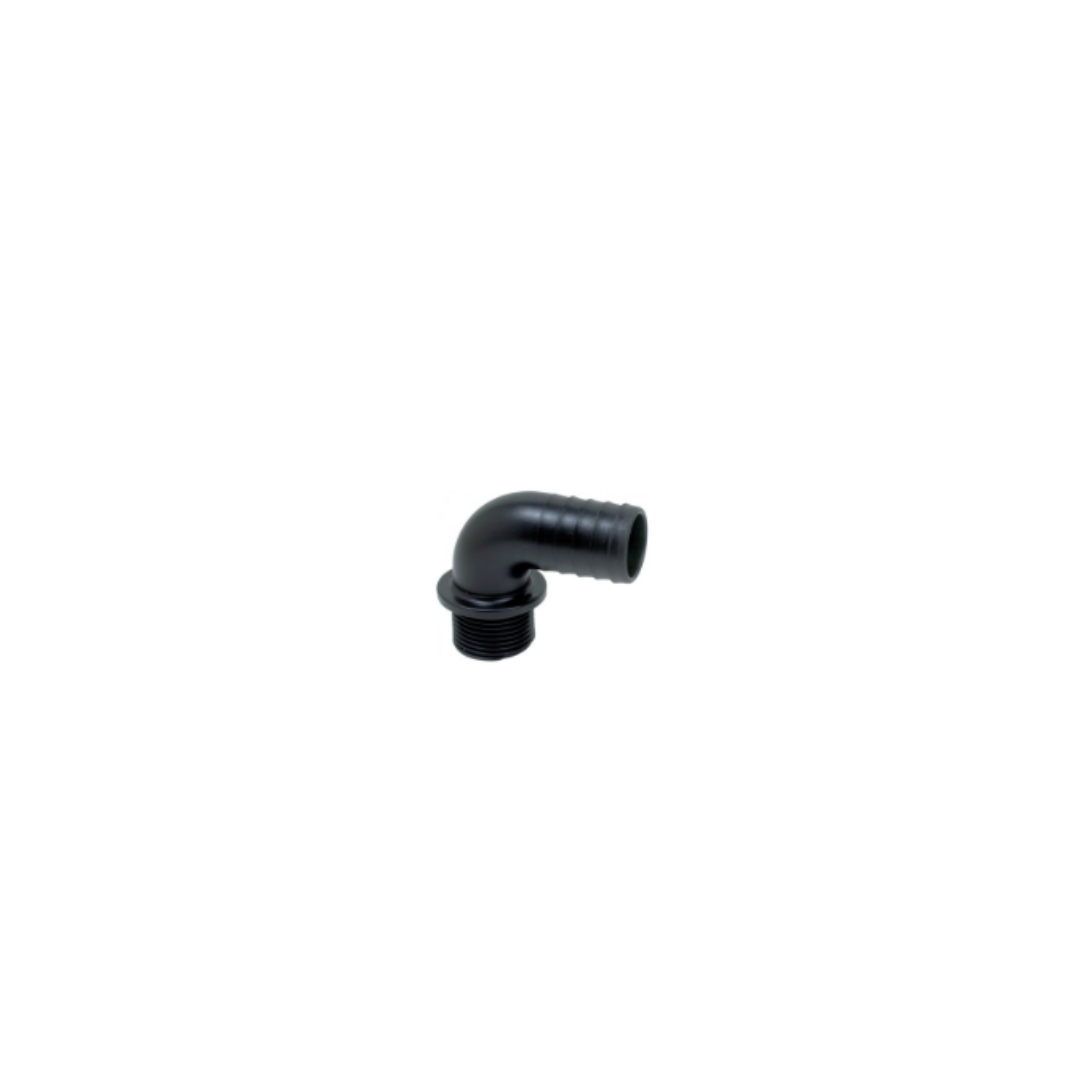

90 Degree Hose Fitting - Male Thread
  • 90 Degree Hose Fitting - Male Thread
  • 90 Degree Hose Fitting - Male Thread
90 Degree Hose Fitting - Male Thread

90 Degree Hose Fitting - Male Thread

£1.45
£1.45
Prices exclude VAT
Code h A B Ø -M- Type
1132110 16 mm 41 mm 35 mm 10 mm G 3/8" _
1132113 16 mm 41 mm 35 mm 13 mm G 3/8" _
1132115 16 mm 41 mm 48 mm 16 mm G 3/8" _
1132213 18 mm 44 mm 45 mm 13 mm G 1/2" _
1132215 18 mm 44 mm 48 mm 16 mm G 1/2" _
1132220 18 mm 44 mm 53 mm 20 mm G 1/2" _
1132313 22 mm 50 mm 45 mm 13 mm G 3/4" _
1132315 22 mm 50 mm 48 mm 16 mm G 3/4" _
1132320 22 mm 50 mm 53 mm 20 mm G 3/4" _
1132325 22 mm 59 mm 57 mm 25 mm G 3/4" _
1132420 22 mm 50 mm 53 mm 20 mm G 1" _
1132425 22 mm 59 mm 57 mm 25 mm G 1" _
1132430 22 mm 60 mm 60 mm 30 mm G 1" _
1132432 22 mm 60 mm 60 mm 32 mm G 1" _
1132525 24 mm 65 mm 57 mm 25 mm G 11/4" _
1132530 24 mm 62 mm 60 mm 30 mm G 11/4" _
1132532 24 mm 62 mm 60 mm 32 mm G 11/4" _
1132535 24 mm 70 mm 80 mm 35 mm G 11/4" _
1132538 24 mm 70 mm 85 mm 38 mm G 11/4" _
1132540 24 mm 70 mm 85 mm 40 mm G 11/4" _
1132630 24 mm 62 mm 60 mm 30 mm G 11/2" _
1132632 24 mm 62 mm 60 mm 32 mm G 11/2" _
1132635 24 mm 70 mm 80 mm 35 mm G 11/2" _
1132638 24 mm 70 mm 85 mm 38 mm G 11/2" _
1132640 24 mm 70 mm 85 mm 40 mm G 11/2" _
1132750 24 mm 88 mm 89 mm 50 mm G 2" _
1132752 24 mm 88 mm 89 mm 52 mm G 2" _
1132960 35 mm 125 mm 120 mm 60 mm G 3" _
1132975 35 mm 125 mm 125 mm 75 mm G 3" _
113213L 27 mm 50 mm 45 mm 13 mm G 1/2" Bulkhead
113215L 27 mm 50 mm 48 mm 16 mm G 1/2" Bulkhead
113220L 27 mm 50 mm 53 mm 20 mm G 1/2" Bulkhead
