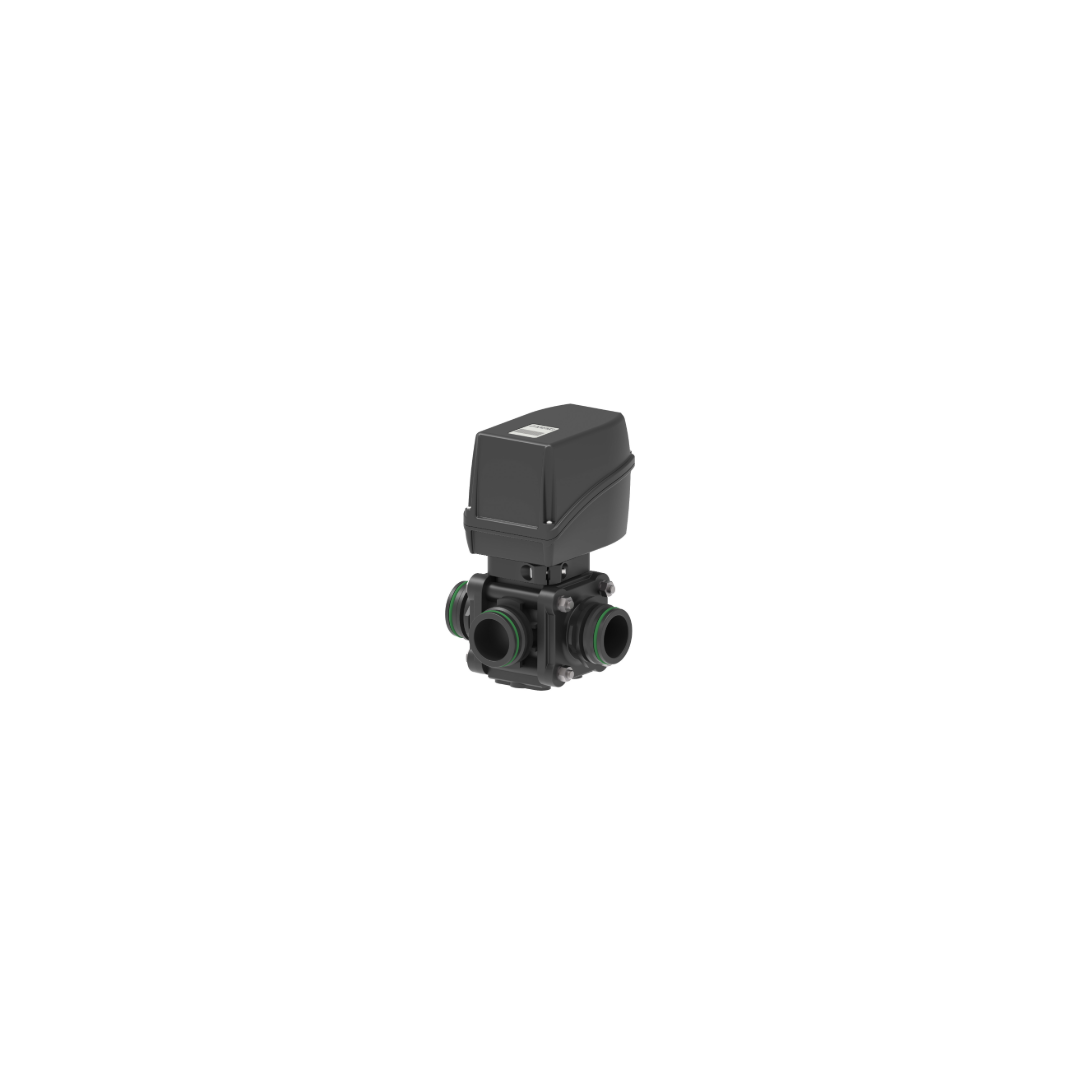

Electric Ball Valve 3-Way, side inlet, fork couplings
853D14S55E
£439.91
Sale price
£439.91
Regular price
Skip to product information
Electric Ball Valve 3-Way, side inlet, fork couplings
£439.91
Sale price
£439.91
Regular price
Prices exclude VAT
| Code | Fork Coupling (T) | MAX Pressure | On / Off @ 90° | Ways | Ball | @ 0,5bar - 7PSI Flow rate | Absorption @ 12 V | Power supply voltage |
| 853D14S55E | T5 | 12 bar | 1.4 s | 3 side | AISI 316 BALL | 270 l/min | 3 A | 12 VDC |
| 853D14S66E | T6 | 12 bar | 1.4 s | 3 side | AISI 316 BALL | 270 l/min | 3 A | 12 VDC |
| 853D15S66E | T6 | 10 bar | 2.3 s | 3 side | AISI 316 BALL | 540 l/min | 3 A | 12 VDC |
| 853D16S77E | T7 | 8 bar | 2.3 s | 3 side | AISI 316 BALL | 650 l/min | 3 A | 12 VDC |
| 853D17S99E | T9 | 6 bar | 2.3 s | 3 side | AISI 316 BALL | 1050 l/min | 3 A | 12 VDC |
